- Pin tata cositorit 0.75 - 1.5 mm2, 20 AWG - 16 AWG
- Compatibil cu conectorul Superseal 1.5
- Cod produs TE Connectivity: 282109-1
Durata de livrare: 24/48h
Cod Produs:
282109-1
Ai nevoie de ajutor?
0756232621
- Descriere
- Review-uri (0)

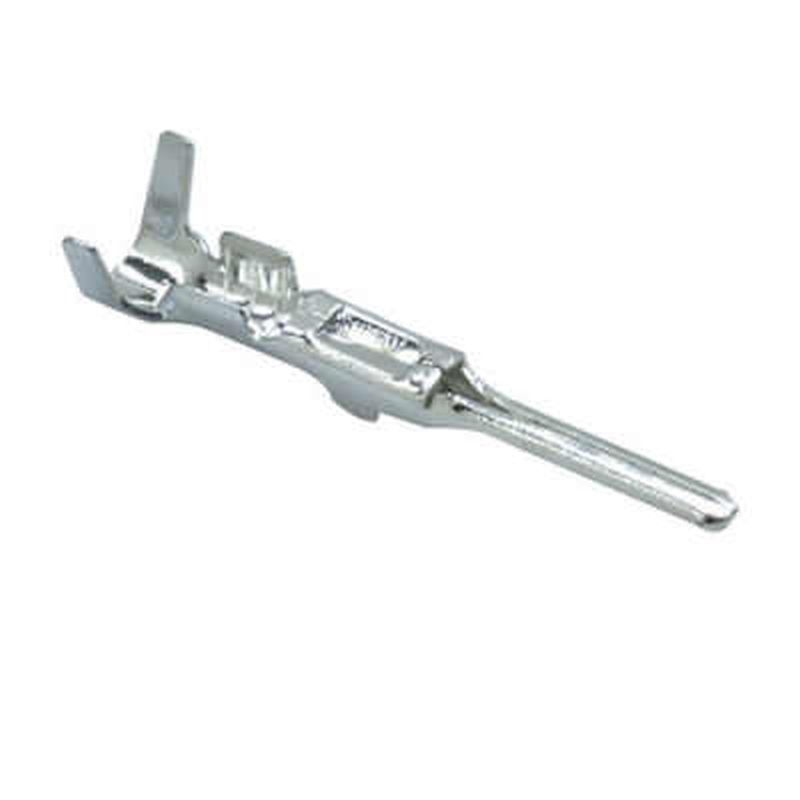

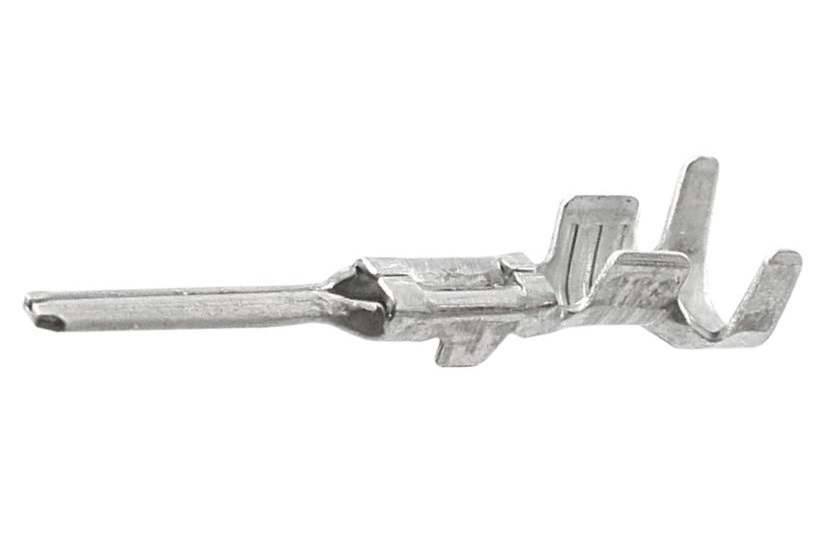

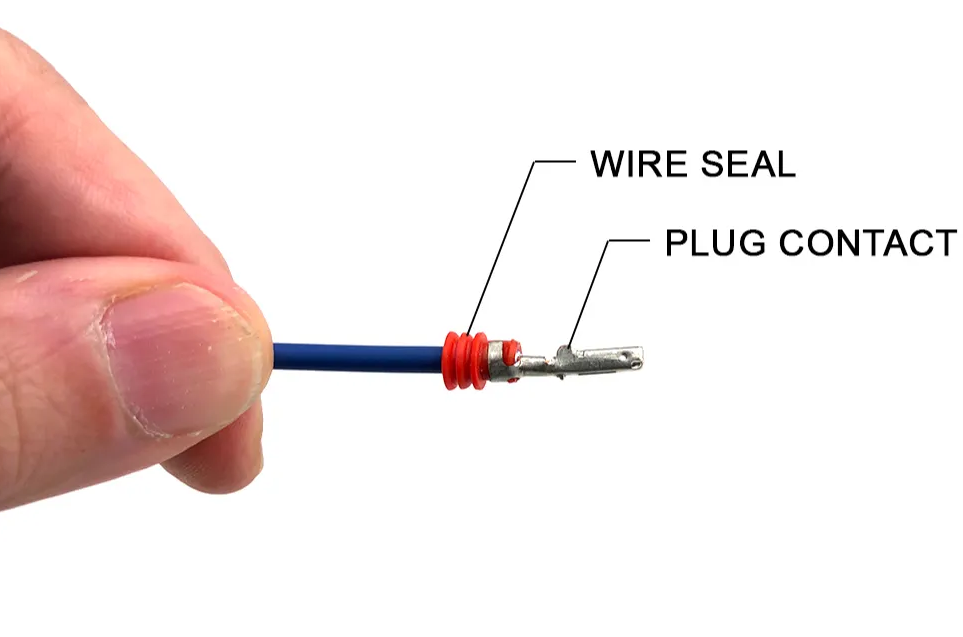

Pin tata cositorit 0.75-1.5mm2 20AWG-16AWG pentru Superseal 1.5 TE Connectivity 282109-1
Descriere generala
Pin tata cositorit 0.75 - 1.5 mm2 20 AWG - 16 AWG, compatibil cu conectorii Superseal 1.5, marca TE Connectivity, cod 282109-1. Acest conector este destinat utilizării în aplicații electrice, asigurând o conexiune fiabilă între cabluri.
Caracteristici tehnice
- Producător: TE Connectivity
- Tip conector: cablu-cablu
- Subtip conector: tată
- Placare contact: cositorit
- Secţiune cablu: 0.75 - 1.5 mm2
- Dimensiune conductor: 20 AWG - 16 AWG
- Curent maxim: 14A
- Ambalaj: rolă, 1 bucată
- Unelte dedicate: 9-1579007-1, 58583-1
Compatibilitate si utilizare

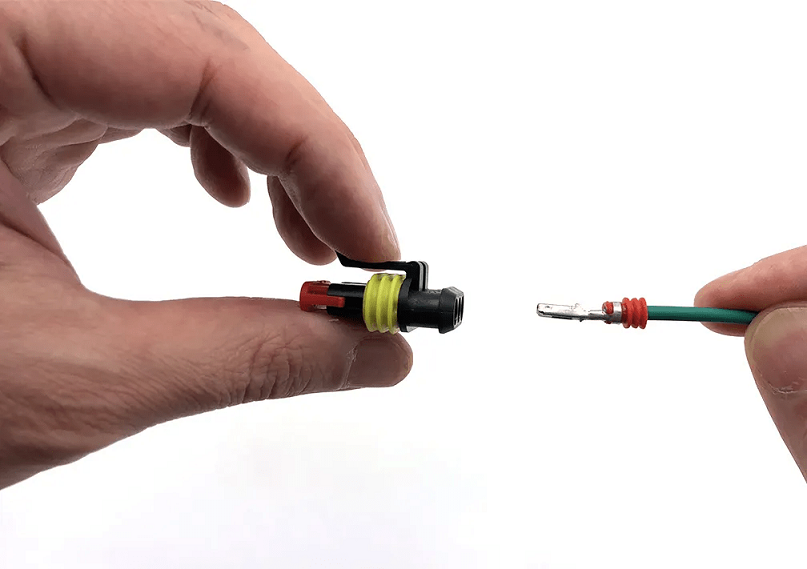

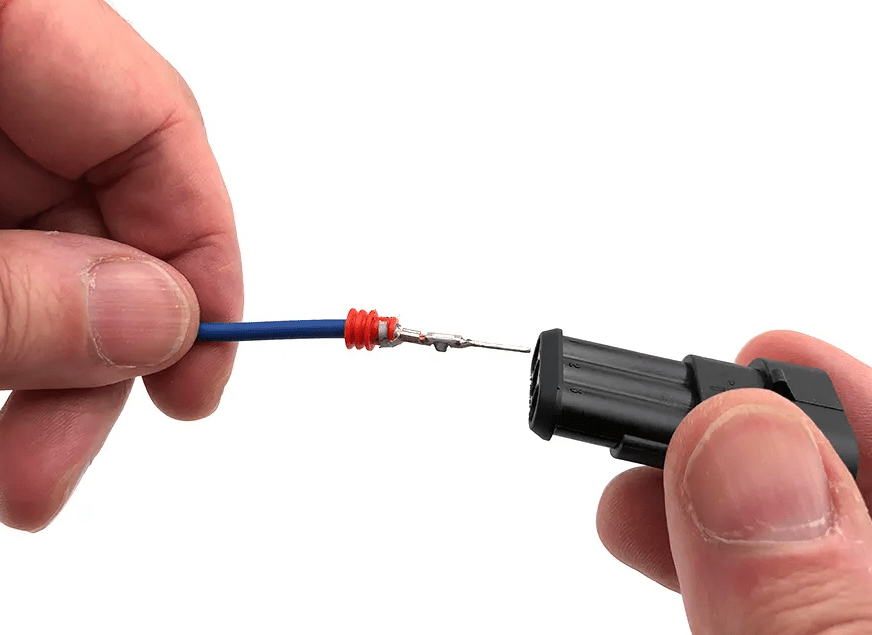

- Compatibil cu conectorii din seria Superseal 1.5
- Utilizat în aplicații electrice pentru conexiuni între cabluri
Intrebari frecvente
Ce tip de cablu este compatibil cu acest pin?
Este compatibil cu cabluri de secţiune 0.75 - 1.5 mm2 (20 AWG - 16 AWG).
Care este curentul maxim suportat?
Curentul maxim suportat este de 14A.
Ce unelte sunt necesare pentru instalare?
Se recomandă utilizarea uneltelor dedicate 9-1579007-1 sau 58583-1.
